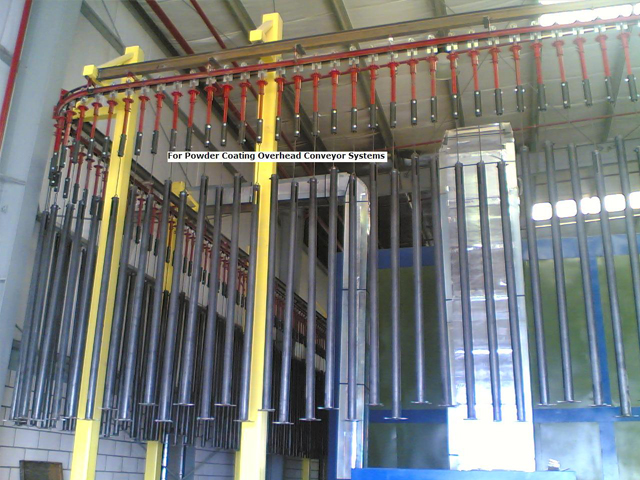

We offer Industrial Overhead Conveyor System, which is cost effective and exceptionally conveyor system. This system is capable in solving all types of material handling requirements of different industries e.g. Tea Factories, Automobile, Tractors, Leather Industries, Ceramics, Cement, Paper, Chemical, etc. This system saves cost, as this is easy to maintain and considerably save floor space to increase labour productivity. and our price U$ 10.50 Per Feet.

Main Advantages

The guide wheel and load wheel of the same diameter control gyroscopic couple, which controls the vibration of movement
through vertical & horizontal bends.
It is absolutely a proven system to absorb any type of vibration or shock.
The Trolleys and Links Axle are mainly made of alloy steel of EN-8 EDD qualities of C.R.C.A. sheets.
The wheels are made of especially high-quality high carbon and manganese steel balls.

Equipment Specifications:

Drive
The Overhead Conveyor system moves by caterpillar or sprocket type drive unit. There is a 1 HP or 2 HP TEFC motor that transmits the motion to speed gearboxes through ‘V’ Belts. The speed can also be regulated as per the necessity using other variable-speed-motors. and the price U$ 1850.00

The output shaft of the speed Gearbox is fitted with a shear pin sprocket. This output shaft transmits motion to dog-chain or sprocket and directly engages two sets of trolleys at a time. It permits a relative motion between trolleys distributing drive power equally and automatically to monorail ensuring continuous movement of the system.

Conveyor Chain

Mono–O–Veyor system is provided with bi-planner type three, four and five wheel chain & trolleys having 6”, 9”, 12”, 9” and 15” pitch. Working tension (ALLOWABLE PULL) of the chain is 350 kg and the breaking load is 3500kg.


Service

We have a team of experienced staff to provide post-sale service to make the existing conveyor running perfectly. In addition, we also provide all the necessary spares made of high-grade steel. We provide total services job on annual basis that includes overhauling motor and gearbox.
