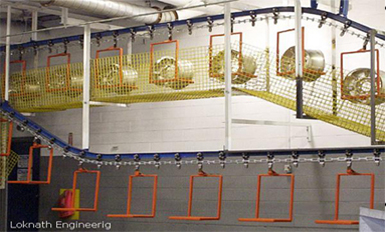

We offer two-wheel heavy-duty Overhead Conveyors, which is a power and free overhead monorail conveyor. This automatic system is economical, integrative space storing and highly efficient in long hour works. This system can be used in manufacturing requirements and automatic workstations to perform functions like transporting parts through ovens, paint booths or similar operations, delivery, loading, unloading, storage and scientific production management.

The conveyor can stop any individual load without stopping the entire productionline. According to the load capability of the trolley, the Power & Free OverheadConveyor can be grouped into light-duty and heavy-duty conveyor. The heavy-duty conveyor systems uses X-348, X-458, and X-678 power chain along with free tracks. The power chain is made of flanged channel in three types e.g. 3", 4" and 6" with a load capacities are 250 kg, 1000 kg, and 4000 kg respectively. These conveyors are highly effective materials handling systems in Automobile industry.

Tension UnitThe Tension Unit is fitted at the end of a 180° horizontal standard loop by compressing two short lengths of track. The tension units are connected togetherby two adjustable sliding system through springs fitted screw.

I-Beam Overhead Conveyor Trolley are in various sizes 6", 4" and 3" with varietyof options.with full ball precision ball bearings designed for heavy duty. And heat applications. Our quality C-45 & EN Drop forged chain and trolley This Typeof Overhead Monorail is an automatic and integrative. The Overhead Monorail Components are an efficient and economical way to utilize area above the floor. They are ideal for transporting parts through ovens, paint booths or similar operations. space storing and delivering system. We manufacture such machines todeliver, lift and store maximum load. Our economical price is for X - 348 Trolley FOB Price U$ 12.51 per pair. And X -348 Chain 4.75 per feet. Please sendus enquiry and fill our text box as per your requirement.

Two Wheel Heavy Duty I-Beam X-678 Conveyors 500 Kgs.capacity,on load bar capacity 1000 Kgs. And Our FOB price for X-678 trolley U$ 44.50 per pair. And chain U$ 14.60 per feet. We also provide turnkey project for complete convey solution. We are looking for your enquiry and fill our text box as per your requirement.
